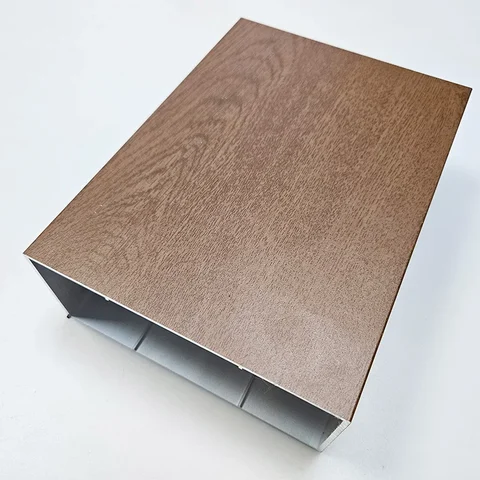

Wood-grain fence application sections — catalog photograph, view 1 — Catalog reference photograph; the controlled drawing governs specification. Photographs are not dimensional drawings.

Catalog reference photograph; the controlled drawing governs specification. Photographs are not dimensional drawings.

Architectural applications

Wood-grain fence application sections

A wood-grain fence section combines a visual requirement with fixing and exposure requirements. The listing does not establish a finished fence system or a tested outdoor coating life.

Ask About This Section

WhatsApp +86 18135720426

Drawing not ready? Describe the application and leave undecided specifications open.

Source-listed reference; drawing and order approval pending. Source checked 2026-10-25.

Specification references and open items.

Terms below come from the supplier's listing title. Confirm the supplied combination and dimensions against your drawing.

Alloy: Not disclosed
Temper: Not disclosed
Section dimensions: Drawing required
Finish: Anodized finish / Wood-grain appearanceTitle reference only
Processing: Not disclosed
Controlled section drawing: Not available in reviewed sources

No numerical production limits, certification or test results are verified here.

Need a controlled section drawing, material record or inspection report for this section? Ask which documents can be supplied and what they cover before approving the order.

Download this reference & RFQ brief Ask about technical documents Check document scope and acceptance

PART-SPECIFIC BUYING GUIDE

What to include in this section request.

Drawing and acceptance questions, not supplier specifications.

Fit and interfaces: Show the member arrangement, fixings and visible end details. Identify the faces where grain direction or a pattern transition will be noticeable.
Finished-part scope: Ask for the actual wood-grain process and delivered finish specification. State how cut ends, drilled holes and concealed contact faces are to be treated.
Sample and acceptance: Approve a physical sample with the intended grain direction and viewing conditions. Keep project structural and exposure requirements separate from appearance approval.

START WITH THE MATING PART

Must adjoining members match in grain direction and shade, or is variation acceptable?

Exposed faces; fixing details; finish sample.

Attach the drawing revision, units, quantity and cut length. Undecided requirements can stay open.

Download the RFQ worksheet

Send this reference with your requirements

Agree the order scope for this reference.

For Wood-grain fence application sections, confirm purchase terms in the quotation.

Source and verification notes

Reference scope and verification.

Catalog reference checked 2026-10-25. This is a catalog reference, not a manufacturer model or an accepted specification.

Complete drawings and accepted specifications remain unverified. Catalog photographs and title terms do not establish Wuhan Sunfull's manufacturing facilities, certifications or production capabilities. Confirm the drawing, required documents and order scope before approval.
