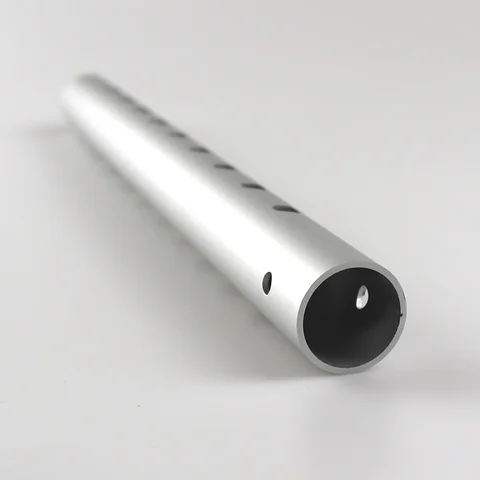

Drilled round-tube references — catalog photograph, view 1 — Catalog reference photograph; the controlled drawing governs specification. Photographs are not dimensional drawings.

Catalog reference photograph; the controlled drawing governs specification. Photographs are not dimensional drawings.

Industrial profiles

Drilled round-tube references

A drilled round tube needs a hole-location definition that can be related to the curved part. The photograph and title do not establish a finished hole pattern or machining accuracy.

Ask About This Section

WhatsApp +86 18135720426

Drawing not ready? Describe the application and leave undecided specifications open.

Source-listed reference; drawing and order approval pending. Source checked 2026-10-25.

Specification references and open items.

Terms below come from the supplier's listing title. Confirm the supplied combination and dimensions against your drawing.

Alloy: 6063Title reference only
Temper: Not disclosed
Section dimensions: Drawing required
Finish: Not disclosed
Processing: Not disclosed
Controlled section drawing: Not available in reviewed sources

No numerical production limits, certification or test results are verified here.

Need a controlled section drawing, material record or inspection report for this section? Ask which documents can be supplied and what they cover before approving the order.

Download this reference & RFQ brief Ask about technical documents Check document scope and acceptance

PART-SPECIFIC BUYING GUIDE

What to include in this section request.

Drawing and acceptance questions, not supplier specifications.

Fit and interfaces: Define the tube axis, end reference and angular orientation of holes. Include the pin, fastener or mating assembly that makes those locations functional.
Finished-part scope: Identify through holes, wall-specific features and internal burr requirements. Explain how the tube is oriented or held when those features are made.
Sample and acceptance: Agree an inspection method for both the hole position and the assembled connection. State how inaccessible internal edges are to be accepted.

START WITH THE MATING PART

What establishes the angular orientation of the hole pattern on the tube?

Hole pattern; tube interfaces; finished end condition.

Attach the drawing revision, units, quantity and cut length. Undecided requirements can stay open.

Download the RFQ worksheet

Send this reference with your requirements

Agree the order scope for this reference.

For Drilled round-tube references, confirm purchase terms in the quotation.

Source and verification notes

Reference scope and verification.

Catalog reference checked 2026-10-25. This is a catalog reference, not a manufacturer model or an accepted specification.

Complete drawings and accepted specifications remain unverified. Catalog photographs and title terms do not establish Wuhan Sunfull's manufacturing facilities, certifications or production capabilities. Confirm the drawing, required documents and order scope before approval.
