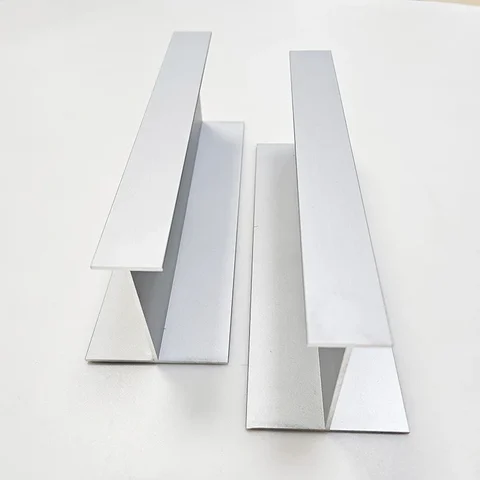

Custom I- and H-section references — catalog photograph, view 1 — Catalog reference photograph; the controlled drawing governs specification. Photographs are not dimensional drawings.

Catalog reference photograph; the controlled drawing governs specification. Photographs are not dimensional drawings.

Custom cross sections

Custom I- and H-section references

I- and H-shaped references need an application-specific support and interface drawing. The section name alone does not establish structural capacity or a standard beam specification.

Ask About This Section

WhatsApp +86 18135720426

Drawing not ready? Describe the application and leave undecided specifications open.

Source-listed reference; drawing and order approval pending. Source checked 2026-10-25.

Specification references and open items.

Terms below come from the supplier's listing title. Confirm the supplied combination and dimensions against your drawing.

Alloy: 6063 / 6061Title reference only
Temper: T5 / T6Title reference only
Section dimensions: Drawing required
Finish: Anodized finish / Sandblasted finishTitle reference only
Processing: Not disclosed
Controlled section drawing: Not available in reviewed sources

No numerical production limits, certification or test results are verified here.

Need a controlled section drawing, material record or inspection report for this section? Ask which documents can be supplied and what they cover before approving the order.

Download this reference & RFQ brief Ask about technical documents Check document scope and acceptance

PART-SPECIFIC BUYING GUIDE

What to include in this section request.

Drawing and acceptance questions, not supplier specifications.

Fit and interfaces: Show flange contacts, support locations and the parts connected to the web or flanges. Identify which planes are used to locate the assembly.
Finished-part scope: Specify holes, end preparation and the actual surface-treatment selection. The title lists anodized and sandblasted terms; the accepted sequence and condition must be agreed.
Sample and acceptance: Separate dimensional and appearance checks from the engineering verification required for the application. State the inspection setup for the supported member.

START WITH THE MATING PART

Which flange or web interfaces control fit, and who approves the application engineering requirements?

Flange interfaces; support conditions; functional datums.

Attach the drawing revision, units, quantity and cut length. Undecided requirements can stay open.

Download the RFQ worksheet

Send this reference with your requirements

Agree the order scope for this reference.

For Custom I- and H-section references, confirm purchase terms in the quotation.

Source and verification notes

Reference scope and verification.

Catalog reference checked 2026-10-25. This is a catalog reference, not a manufacturer model or an accepted specification.

Complete drawings and accepted specifications remain unverified. Catalog photographs and title terms do not establish Wuhan Sunfull's manufacturing facilities, certifications or production capabilities. Confirm the drawing, required documents and order scope before approval.

Custom I- and H-section references

Specification references and open items.

What to include in this section request.

Which flange or web interfaces control fit, and who approves the application engineering requirements?

Agree the order scope for this reference.

Reference scope and verification.

Compare related section references.

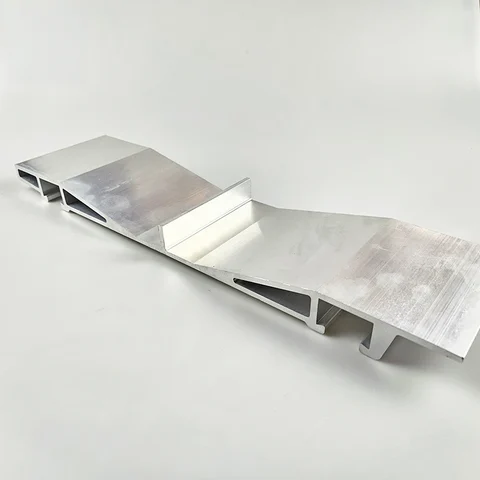

Custom wide-section extrusions
