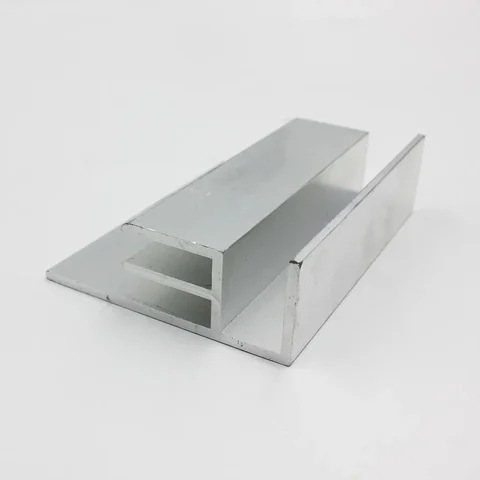

Custom F-section extrusions — catalog photograph, view 1 — Catalog reference photograph; the controlled drawing governs specification. Photographs are not dimensional drawings.

Catalog reference photograph; the controlled drawing governs specification. Photographs are not dimensional drawings.

Custom cross sections

Custom F-section extrusions

For an F-section, define what each leg locates, supports or conceals. Similar silhouettes may have different engagement depths and assembly paths.

Ask About This Section

WhatsApp +86 18135720426

Drawing not ready? Describe the application and leave undecided specifications open.

Source-listed reference; drawing and order approval pending. Source checked 2026-10-25.

Specification references and open items.

Terms below come from the supplier's listing title. Confirm the supplied combination and dimensions against your drawing.

Alloy: 6063 / 6061Title reference only
Temper: T5 / T6Title reference only
Section dimensions: Drawing required
Finish: Not disclosed
Processing: Not disclosed
Controlled section drawing: Not available in reviewed sources

No numerical production limits, certification or test results are verified here.

Need a controlled section drawing, material record or inspection report for this section? Ask which documents can be supplied and what they cover before approving the order.

Download this reference & RFQ brief Ask about technical documents Check document scope and acceptance

PART-SPECIFIC BUYING GUIDE

What to include in this section request.

Drawing and acceptance questions, not supplier specifications.

Fit and interfaces: Show the mating panel or rail, insertion direction and fixed stops. Identify the leg faces that govern location and those used only for appearance.
Finished-part scope: Mark cut ends, fixing holes and any notches that interrupt the continuous section. State whether the finish applies to concealed as well as visible faces.
Sample and acceptance: Agree sample engagement with the intended mating part. Use the controlled drawing to set functional checks instead of assigning acceptance from the section letter.

START WITH THE MATING PART

Does the F-section locate a panel, form an edge cover or serve another defined interface?

F-section interfaces; attachment; edge condition.

Attach the drawing revision, units, quantity and cut length. Undecided requirements can stay open.

Download the RFQ worksheet

Send this reference with your requirements

Agree the order scope for this reference.

For Custom F-section extrusions, confirm purchase terms in the quotation.

Source and verification notes

Reference scope and verification.

Catalog reference checked 2026-10-25. This is a catalog reference, not a manufacturer model or an accepted specification.

Complete drawings and accepted specifications remain unverified. Catalog photographs and title terms do not establish Wuhan Sunfull's manufacturing facilities, certifications or production capabilities. Confirm the drawing, required documents and order scope before approval.
