Roller-blind top sections — catalog photograph, view 1 — Catalog reference photograph; the controlled drawing governs specification. Photographs are not dimensional drawings.

Architectural applications

Roller-blind top sections

A roller-blind top section should be selected against the mechanism and installation detail. The profile reference alone does not establish compatibility with a particular blind system.

Ask About This Section

WhatsApp +86 18135720426

Drawing not ready? Describe the application and leave undecided specifications open.

Source-listed reference; drawing and order approval pending. Source checked 2026-10-25.

Specification references and open items.

Terms below come from the supplier's listing title. Confirm the supplied combination and dimensions against your drawing.

Alloy: 6063Title reference only
Temper: Not disclosed
Section dimensions: Drawing required
Finish: Not disclosed
Processing: Not disclosed
Controlled section drawing: Not available in reviewed sources

No numerical production limits, certification or test results are verified here.

Need a controlled section drawing, material record or inspection report for this section? Ask which documents can be supplied and what they cover before approving the order.

Download this reference & RFQ brief Ask about technical documents Check document scope and acceptance

PART-SPECIFIC BUYING GUIDE

What to include in this section request.

Drawing and acceptance questions, not supplier specifications.

Fit and interfaces: Include bracket engagement, mechanism clearance and the installed orientation. Identify any covers or end fittings that must connect to the section.
Finished-part scope: List mounting holes, cut ends and end preparation. Separate the extrusion request from the mechanism, accessories and finished blind assembly.
Sample and acceptance: Check a sample with the intended brackets and mechanism. Define the appearance requirement on the face visible from the room.

START WITH THE MATING PART

Can you provide the bracket and mechanism interface drawings with the required member length?

System interface; attachment method; visible finish.

Attach the drawing revision, units, quantity and cut length. Undecided requirements can stay open.

Download the RFQ worksheet

Send this reference with your requirements

Agree the order scope for this reference.

For Roller-blind top sections, confirm purchase terms in the quotation.

Source and verification notes

Reference scope and verification.

Catalog reference checked 2026-10-25. This is a catalog reference, not a manufacturer model or an accepted specification.

Complete drawings and accepted specifications remain unverified. Catalog photographs and title terms do not establish Wuhan Sunfull's manufacturing facilities, certifications or production capabilities. Confirm the drawing, required documents and order scope before approval.

Roller-blind top sections

Specification references and open items.

What to include in this section request.

Can you provide the bracket and mechanism interface drawings with the required member length?

Agree the order scope for this reference.

Reference scope and verification.

Compare related section references.

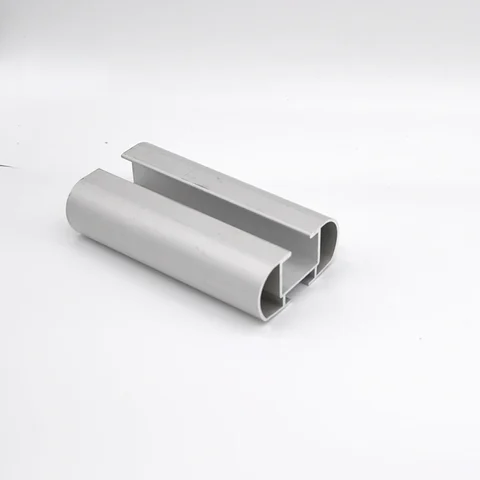

Rounded channel application profiles
